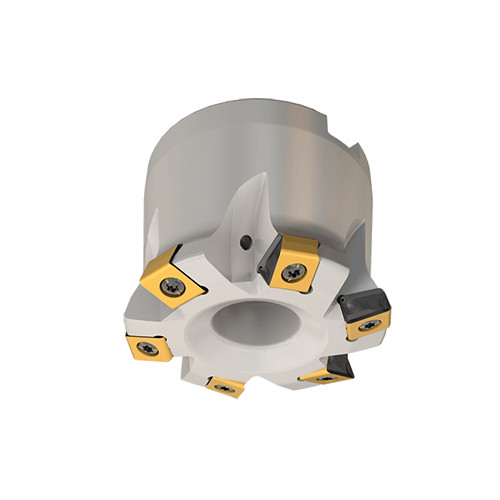

FTP D040-4-16-R-LN10
HELITANG, fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges. 3 mm maximum face milling D.O.C. and 8 mm side plunging capacity. Provide excellent side wall surface finish and a flat bottom.
Price: Log in For Price
Especificações do Produto

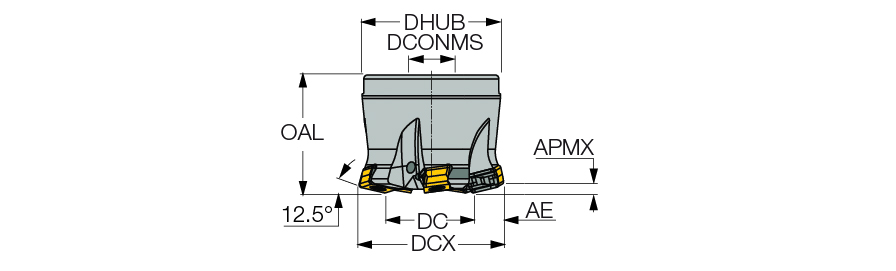

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | HTP LNAR 1006 FR-P |
| Cutting Diameter (DC) | 22 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 40 mm | Material do corpo | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |

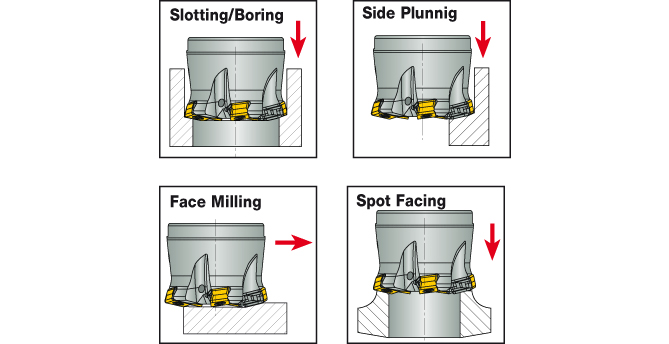

| Depth of Cut Maximum (APMX) | 1.8 mm | Aplicação | | Descida de Rampa | Faceamento | Mergulho Lateral | Perfilamento | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tipo de medição | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Hub Diameter (DHUB) | 38 mm | Tool Type | Plungers cutters |
| Arbor Style | A | Unidade | M |
Características do Produto
| Descrição da Família | HELITANG, fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges. 3 mm maximum face milling D.O.C. and 8 mm side plunging capacity. Provide excellent side wall surface finish and a flat bottom. | Nome da Família | FTP-LN10 |
| Observações | For application details, click on More Info Radius for programming R=3.4 mm | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.3780
Nome
Indexable Face Mills
Nome da Família
FTP-LN10
Nome da marca
Iscar
