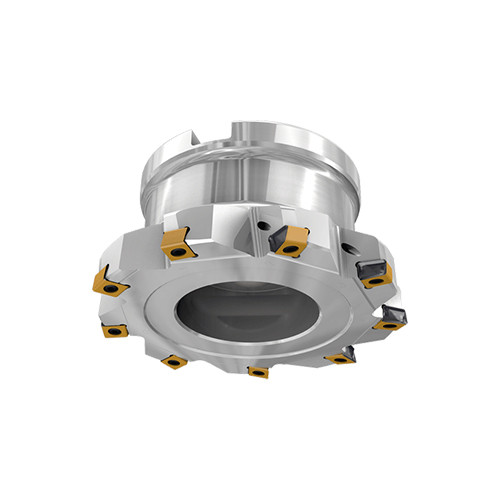

HTF D050-05-22-R-LN10
Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications.
Price: Log in For Price
Especificações do Produto

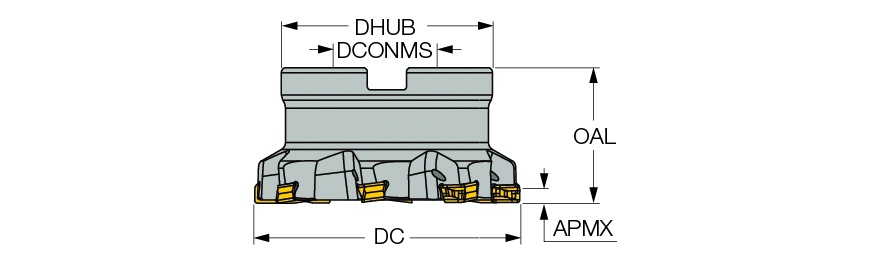

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | HTP LNAR 1006 FR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Material do corpo | Steel |
| Depth of Cut Maximum (APMX) | 0.25 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Aplicação | | Faceamento | Rebaixamento | |
| Overall Length (OAL) | 40 mm | Tipo de medição | Metric |
| Hub Diameter (DHUB) | 48 mm | Unidade | M |
| Arbor Style | A |
Características do Produto
| Descrição da Família | Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications. | Nome da Família | HTF-R-LN10 |

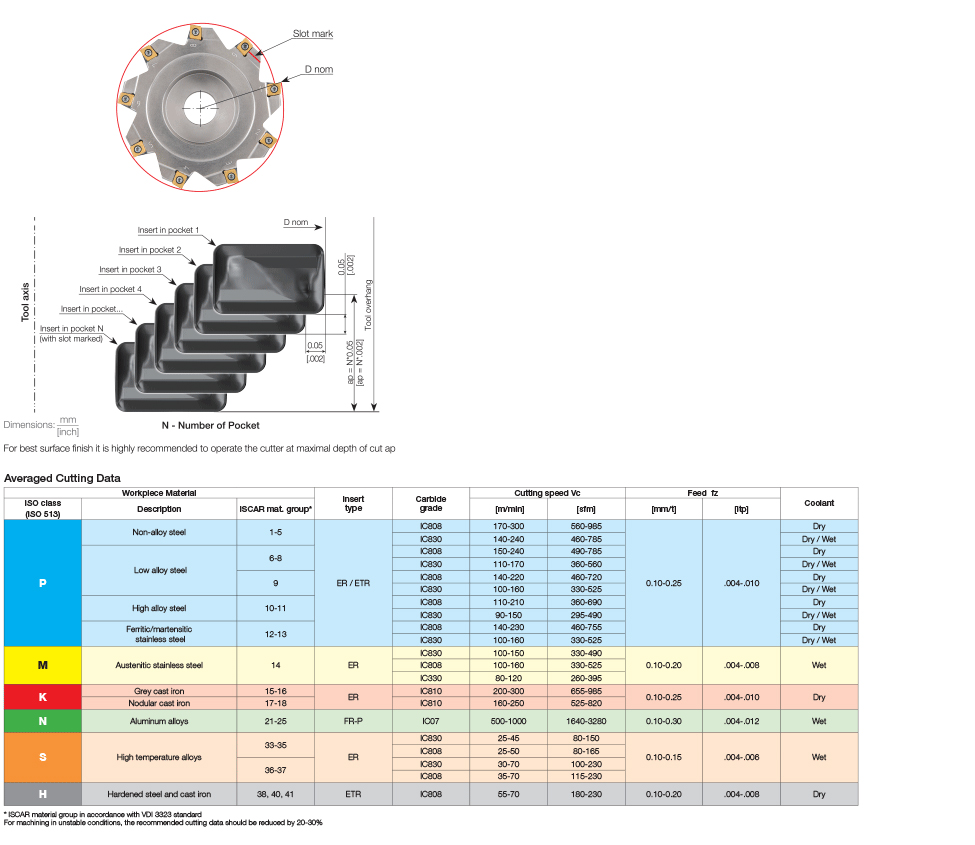

| Observações | For best surface finish it is highly recommended to operate the cutter at maximal depth of cut For user guide, click on More Info | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.4950
Nome
Indexable Face Mills
Nome da Família
HTF-R-LN10
Nome da marca
Iscar
