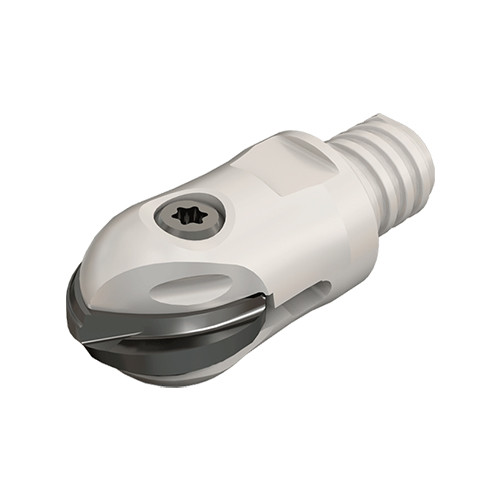

HCM D12/.50-MMT08
Ball nose multifunction endmills with a MULTI-MASTER threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries
Price: Log in For Price
Especificações do Produto

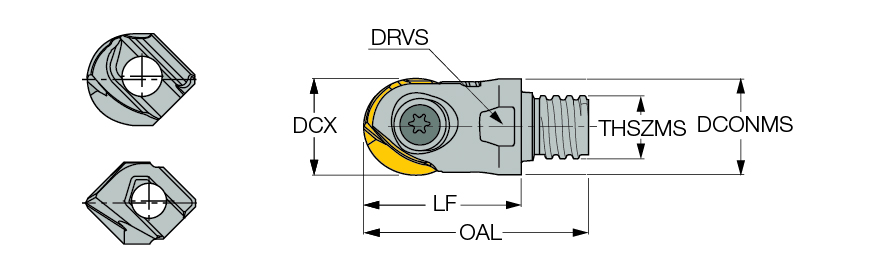

| Cutting Diameter (DC/DCX) | 12 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Diameter (DC) | 12 mm | Drive Size (DRVS) | 10 mm |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 9.77 mm | Torque (TQ) | 6 Nxm |
| Overall Length (OAL) | 28 mm | Corner Radius (RE) | 6 mm |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Aplicação | | Contorno lateral | Fresa circular | Furar e Fresar | Perfilamento | Rebaixamento | Rebaixo inclinado e chanfro | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 11.5 mm | Tipo de medição | Metric |
| Master Insert Identification (MIID) | HBR D120-QF | Material do corpo | Steel |
| Functional Length (LF) | 20 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Tool Type | Ball nose endmills | Unidade | M |
Características do Produto
| Descrição da Família | Ball nose multifunction endmills with a MULTI-MASTER threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries | Nome da Família | HCM-MM |
| Observações | The dimensions are for HBR inserts Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation click on More Info | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.1040
Nome
Indexable End Mills
Nome da Família
HCM-MM
Nome da marca
Iscar
