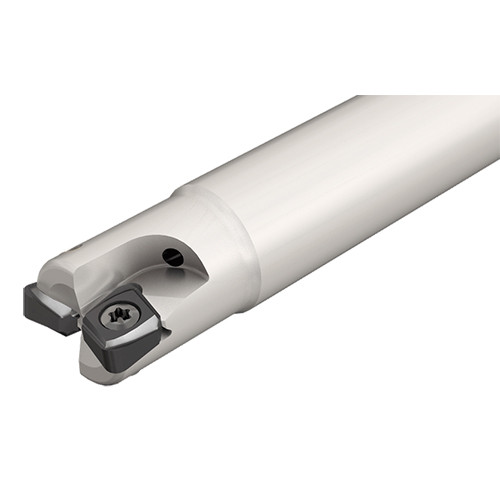

E90CN D20-3-L140-C19-07-C
90° endmills carrying CNMT/HT .. inserts. Used mainly for milling square shoulders providing excellent finish of the shoulder side surface. They can ramp into the material to machine cavities.
Price: Log in For Price
Especificações do Produto
| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 20 mm |
| Cutting Diameter (DC) | 20 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 140 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Tipo de Haste | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 3.5 Degrees | Tipo de medição | Metric |
| Aplicação | | Descida de Rampa | Fresa circular | Rebaixamento | | Material do corpo | Steel |
| Connection Diameter Machine Side (DCONMS) | 19 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | CNHT 070315 | Unidade | M |
Características do Produto
| Descrição da Família | 90° endmills carrying CNMT/HT .. inserts. Used mainly for milling square shoulders providing excellent finish of the shoulder side surface. They can ramp into the material to machine cavities. | Nome da Família | E90CN |
| Observações | For adaptation click on More Info Diameter D according to insert r1.0 | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.3230
Nome
Indexable End Mills
Nome da Família
E90CN
Nome da marca
Iscar
