FFX4 ED25/.98-4-M12-04
Endmills with FLEXFIT threaded adaptation carrying small double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets milling.
Price: Log in For Price
Especificações do Produto

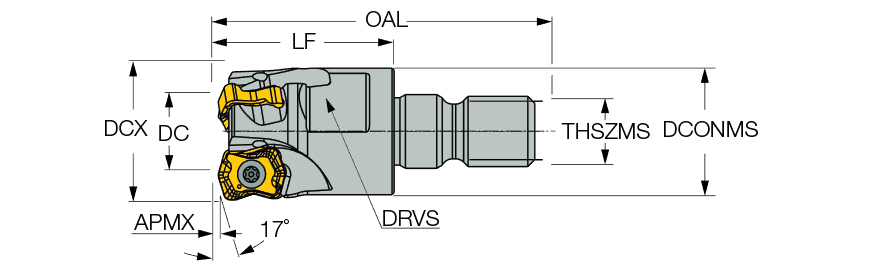

| Cutting Diameter (DC/DCX) | 25 mm | Drive Size (DRVS) | 17 mm |
| Cutting Diameter (DC) | 17.6 mm | Torque (TQ) | 0.9 Nxm |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.8 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Overall Length (OAL) | 52 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.8 Degrees | Tipo de medição | Metric |
| Aplicação | | Descida de Rampa | Faceamento | Imersão e Pequena remoção | Interpolação em hélice | Mergulho Lateral | Perfilamento | | Material do corpo | Steel |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Master Insert Identification (MIID) | FFX4 XNMU 040310T | Cutting Diameter Maximum (DCX) | 25 mm |
| Functional Length (LF) | 30 mm | Unidade | M |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
Características do Produto
| Descrição da Família | Endmills with FLEXFIT threaded adaptation carrying small double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets milling. | Nome da Família | FFX4 ED-M |

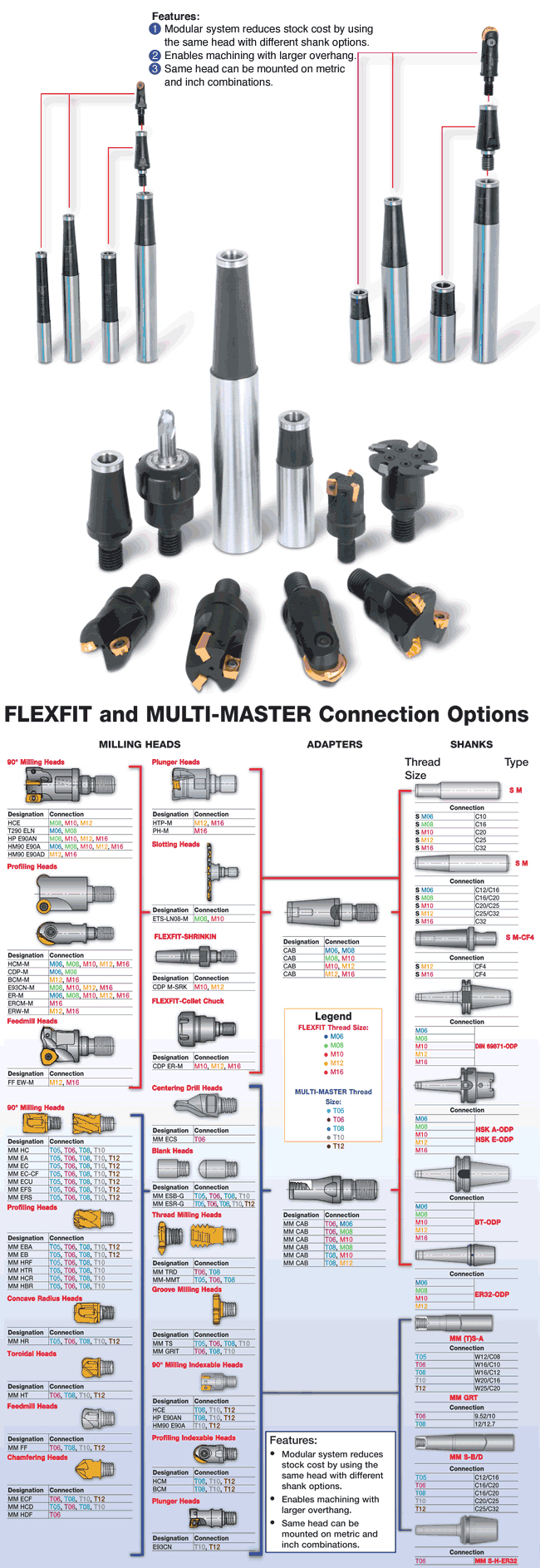

| Observações | For adaptation, click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Estimated torque values are specified in the TQ_3 parameter Radius for programming: for insert XNMU 1.8 mm, for insert XNMW 1.72 mm | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.1360
Nome
Indexable End Mills
Nome da Família
FFX4 ED-M
Nome da marca
Iscar
