Especificações do Produto

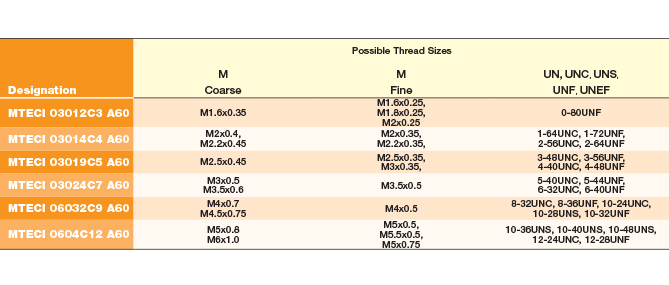

| Tamanho da Rosca | (a) Several Sizes | Pitch TPI External (TPI Ext) | 48-24 |
| Rosca standard | THFT | | Espaçamento TPI | 0.50-1.00 mm |

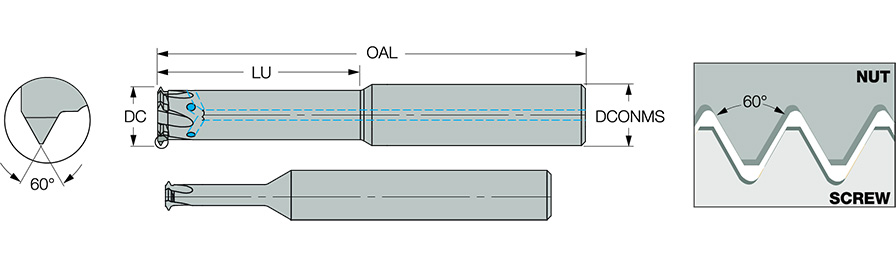

| Connection Diameter Machine Side (DCONMS) | 6 mm | Espaçamento Externo | 0.50-1.00 mm |
| Cutting Diameter (DC) | 3.2 mm | Material da aresta de Corte | Carbide |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 9.5 mm |
| Flute Count (NOF) | 3 | Tipo de medição | Metric |
| Coolant Supply Property (CSP) | External | Classe | IC902 |
| Tipo de Haste | Round | Tool Type | Solid carbide thread mills |
| Revestimento | TiAlN | Material do corpo | Carbide |
| Aplicação | | Fresamento Externo de Rosca | Fresamento Interno de Rosca | | Connection Code Machine Side (CCMS) | Cylindrical |
| Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | | Thread Form Type (THFT) | M60 |
| Pitch TPI Internal (TPI Int) | 48-24 | Unidade | M |
Características do Produto

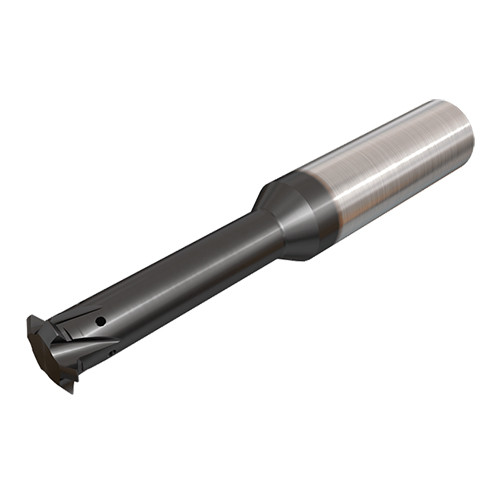

| Descrição da Família | 60° partial profile solid carbide thread mills with coolant holes in the large diameters, for internal and external threads. Single cutting edge, used for deep threads and where very long overhang is required. | COO | Israel |
| Observações | For (a) and detailed cutting recommendations, click on More Info DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Peso da embalagem
0.0230
