MTECSH 08067C22 16UN IC903
ardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread.
Price: Log in For Price
Especificações do Produto
| Tamanho da Rosca | 3/8 | Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | |

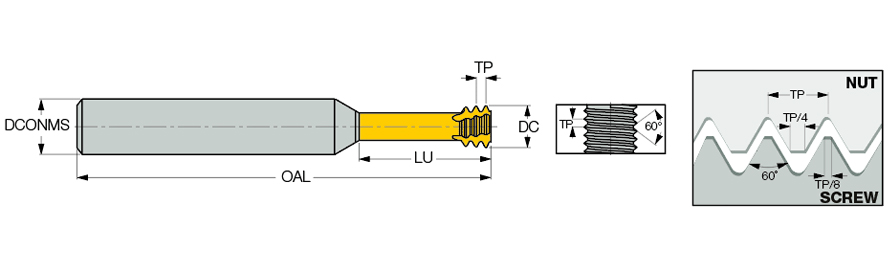

| Thread Pitch (TP) | 1.588 mm | Material da aresta de Corte | Carbide |
| Threads per Inch (TPI) | 16 | Usable Length (LU) | 22 mm |
| Rosca standard | UNC |THFT | | Tipo de medição | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Classe | IC903 |
| Cutting Diameter (DC) | 6.7 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 64 mm | Material do corpo | Carbide |
| Flute Count (NOF) | 3 | Connection Code Machine Side (CCMS) | Cylindrical |
| Tipo de Haste | Round | Thread Form Type (THFT) | UN60 |
| Revestimento | AlTiN | Unidade | M |
| Aplicação | | Fresamento Interno de Rosca | |
Características do Produto
| Descrição da Família | ardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | COO | Israel |
Shipping Info
Peso da embalagem
0.0400
