Especificações do Produto

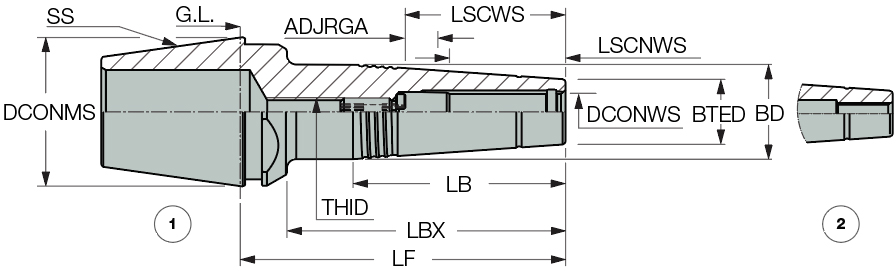

| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Length Maximum (LBX) | 2-1/2″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Clamping Length Workpiece Side (LSCWS) | 1.626″ |
| Shank Size (SS) | ER32 | Tipo de medição | Inch |
| Body Length (LB) | 1.126″ | Material do corpo | Steel |
| Body Diameter (BD) | 0.945″ | Unidade | I |
| Body Taper End Diameter (BTED) | 0.787″ |

Características do Produto

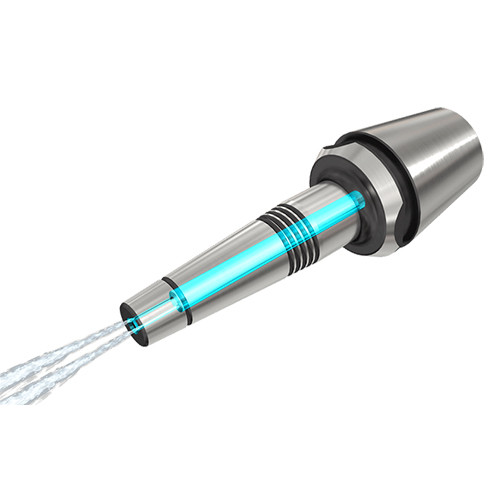

| Descrição da Família | Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only. | Nome da Família | ER-SRK-CX |
| Observações | For carbide tools only For through tool coolant, preset screw must be removed | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.6658
Nome
Shrink Fit Holders
Nome da Família
ER-SRK-CX
Nome da marca
Iscar
