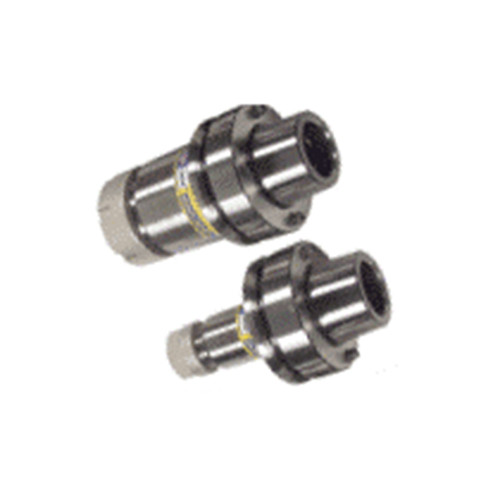

HSK FM63 ER32X80
ER collet chuck with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum.
Price: Log in For Price
Especificações do Produto

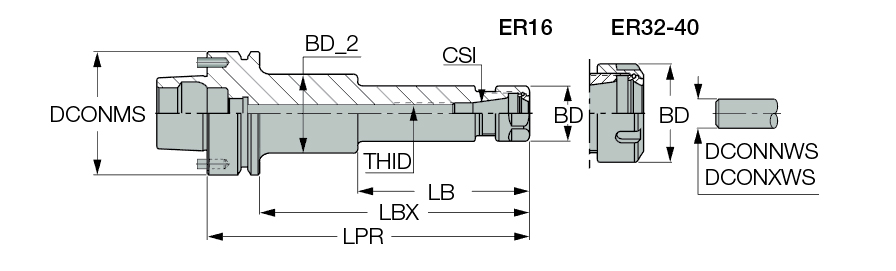

| Shank Size (SS) | 63 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Tipo de medição | Metric |
| Protruding Length (LPR) | 80 mm | Material do corpo | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK | Unidade | M |
Características do Produto
| Descrição da Família | ER collet chuck with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum. | Nome da Família | HSK FM-ER |
| Observações | Used on Makino machine models MAG The anti-slip pins can be removed, turning the toolholders into a standard HSK F63 type A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
1.1690
Nome
Pinça
Nome da Família
HSK FM-ER
Nome da marca
Iscar
