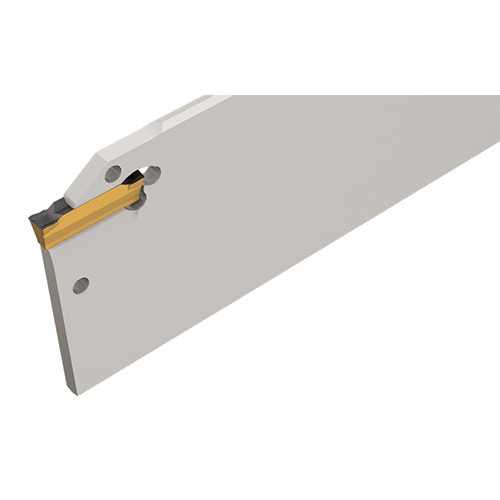

DGFH 32-5
Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".
Price: Log in For Price
Especificações do Produto

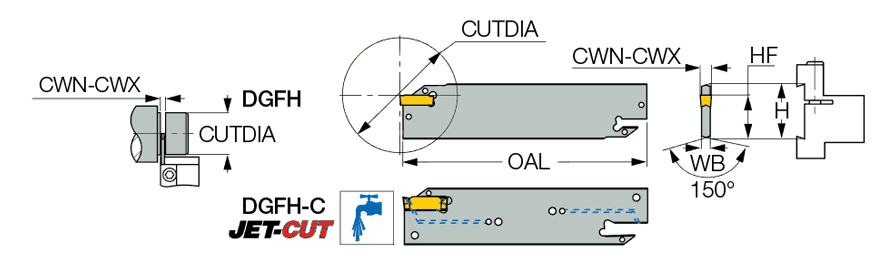

| Shank Height (H) | 32 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 120 mm |
| Cutting Width Maximum (CWX) | 5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 150 mm | Tipo de medição | Metric |
| Functional Length (LF) | 150 mm | Body Width_2 (WB_2) | 4 mm |
| Aplicação | | Canal | Corte | | Tool Assembly Length (LTA) | 70 mm |
| Number of Pocket (NOP) | 2 | Unidade | M |
| Material do corpo | Steel |
Características do Produto
| Descrição da Família | Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C". | Nome da Família | DGFH |
| Observações | DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - click on More Info | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.1450
Nome
Parting Off Indexable Holders
Nome da Família
DGFH
Nome da marca
Iscar
Related Documentation

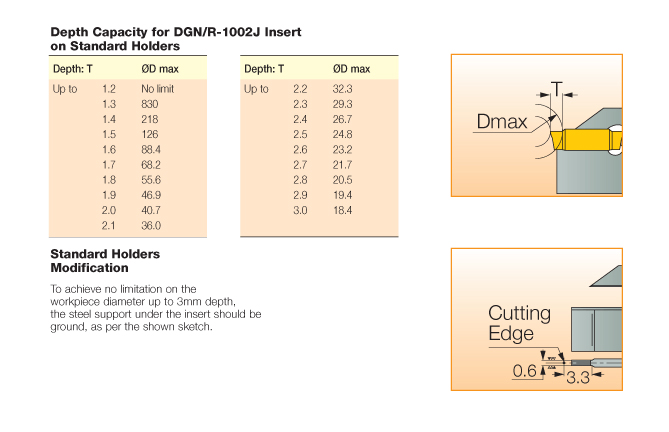

For DG.-1mm inserts, modify holder pocket according to depth capacity table.
