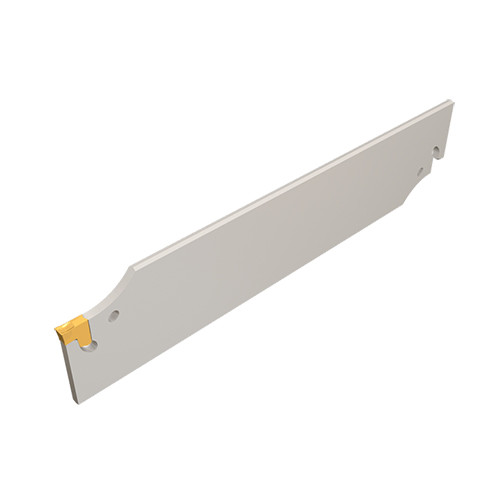

TGFH 26-1.6
Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life.
Price: Log in For Price
Especificações do Produto

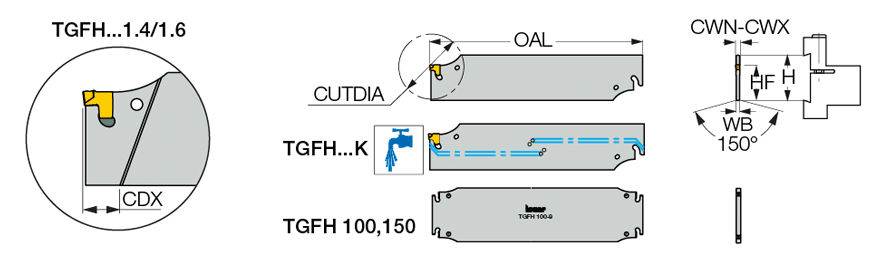

| Shank Height (H) | 26 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 1.3 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 35 mm |
| Cutting Width Minimum (CWN) | 1.6 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 1.6 mm | Tipo de medição | Metric |
| Overall Length (OAL) | 110 mm | Body Width_2 (WB_2) | 1.6 mm |
| Aplicação | | Canal | Corte | | Tool Assembly Length (LTA) | 0.69 mm |
| Number of Pocket (NOP) | 2 | Unidade | M |
| Material do corpo | Steel |
Características do Produto
| Descrição da Família | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life. | Nome da Família | TGFH/R/L |

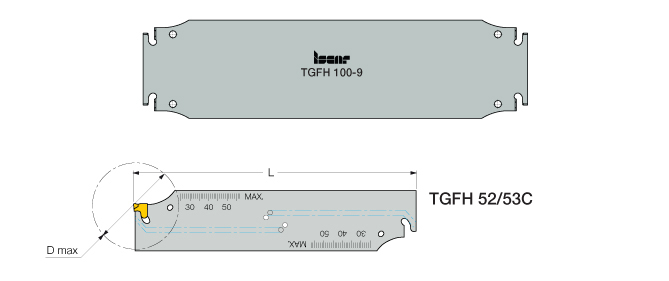

| Observações | For TGFH ..C-. and for TGFH 100-9 drawings, click More Info | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.0390
Nome
Parting Off Indexable Holders
Nome da Família
TGFH/R/L
Nome da marca
Iscar
