Especificações do Produto

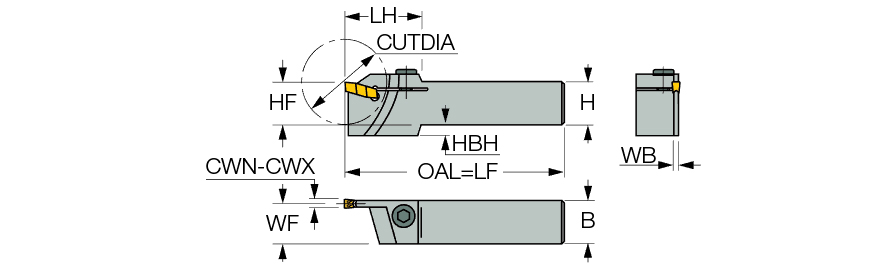

| Cutting Width Minimum (CWN) | 3 mm | Head Length (LH) | 36 mm |
| Cutting Width Maximum (CWX) | 4 mm | Overall Length (OAL) | 140 mm |
| Cutting Depth Maximum (CDX) | 20 mm | Aplicação | | Canal | Corte | Perfil Externo | Rosqueam. externo (linha GRIP) | Rosqueamento (Linha Grip exter | Torneamento | |
| Shank Height (H) | 25 mm | Material do corpo | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Body Width (WB) | 2.5 mm | Tipo de medição | Metric |
| Functional Width (WF) | 23.7 mm | Unidade | M |

Características do Produto
| Descrição da Família | Fixadores para usinagem profunda, até 1.26inch. | Nome da Família | GHGR/L |

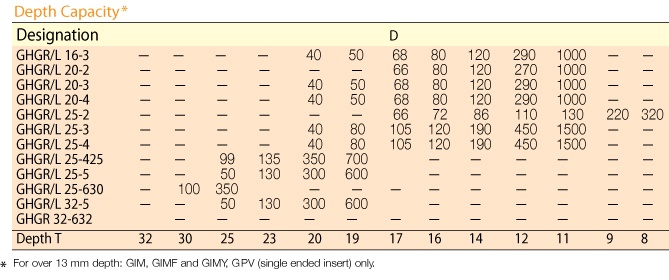

| Observações | For machining depth over 13 mm, a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter Dmax For grooving a part with a diameter larger than CUTDIA, click on More Info For using TIP and GIVR/L inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on More Info | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.6000
Nome

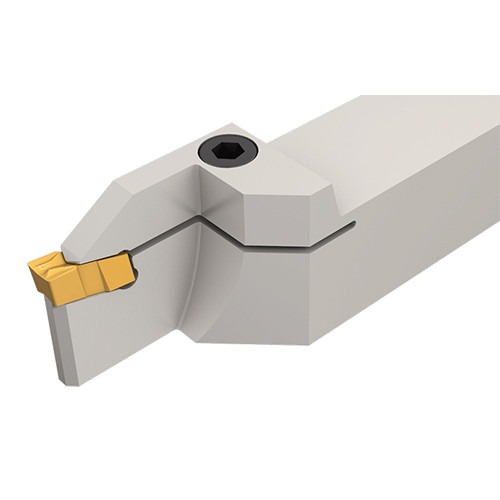

Groove/Turn Indexable Holders
Nome da Família
GHGR/L
Nome da marca
Iscar
