Especificações do Produto

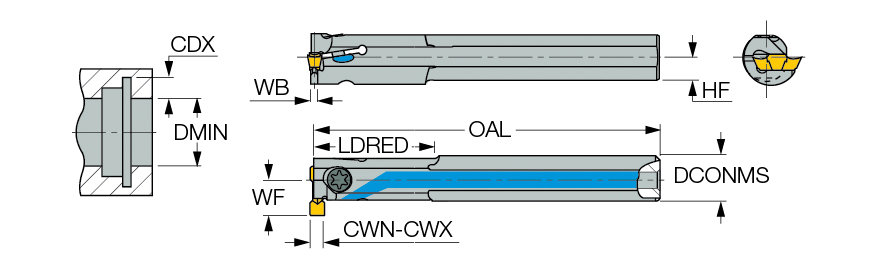

| Cutting Width Minimum (CWN) | 2.4 mm | Overall Length (OAL) | 125 mm |
| Cutting Width Maximum (CWX) | 3.2 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Depth Maximum (CDX) | 2.4 mm | Aplicação | | Canal interno | Perfil interno | Rosqueam. interno (linha GRIP) | Rosqueamento (Linha Grip inter | Torneamento interno | |
| Body Width (WB) | 2 mm | Material do corpo | Steel |
| Minimum Bore Diameter (DMIN) | 12.5 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 10.5 mm | Tipo de medição | Metric |
| Head Length (LH) | 20 mm | Unidade | M |

Características do Produto
| Descrição da Família | Internal machining bars with coolant holes using GEMI and GEPI inserts in widths larger than 1.9 mm. | Nome da Família | GEHIR/L-ISC2801042 -M |
| COO | Israel | Nome da marca | Iscar |
Shipping Info
Peso da embalagem
0.437
Nome
Groove/Turn Indexable Holders
Nome da Família
GEHIR/L-ISC2801042 -M
Nome da marca
Iscar
