MM S-A-L075-C10-T06
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.
Price: Log in For Price
Especificações do Produto

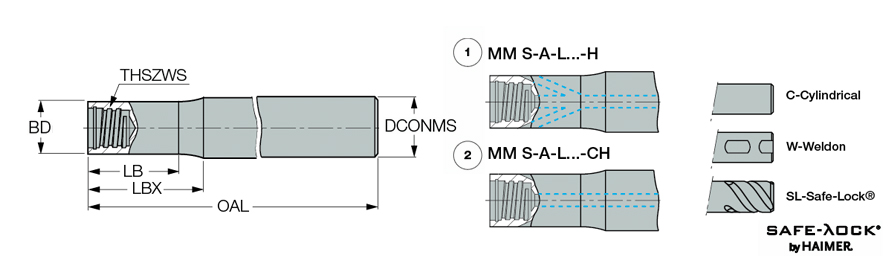

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Body Length (LB) | 17.7 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Tipo de medição | Metric |
| Overall Length (OAL) | 75 mm | Rotational Speed Maximum (RPMX) | 60000 Rev/min |
| Body Length Maximum (LBX) | 20 mm | Material do corpo | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 9.6 mm | Unidade | M |
Características do Produto
| Descrição da Família | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Nome da Família | MM S-A (stepped shanks) |
| Observações | For adaptation click on More Info Do not apply lubricant to the threaded connection | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.0530
Nome
Solid End Mill Shanks
Nome da Família
MM S-A (stepped shanks)
Nome da marca
Iscar
