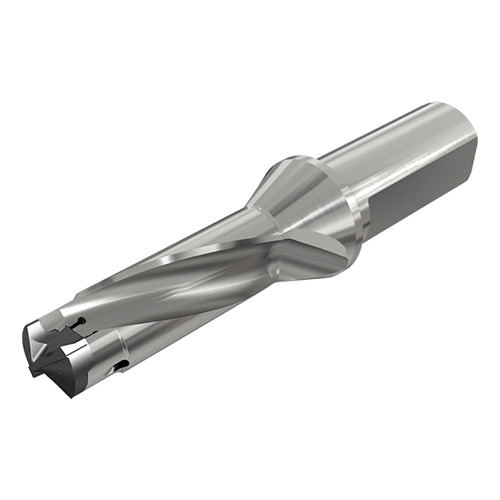

DCM 190-057-25A-3D
Brocas de 10 a 20,5 de diâmetro com encaixes intercambiáveis L = 3xD. CHAMDRILL - parte da linha multi funcional CHAMELEON.
Price: Log in For Price
Especificações do Produto
| Cutting Diameter (DC) | 19 mm | Shank Length (LS) | 56 mm |
| Usable Length (LU) | 57 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Aplicação | | Furação | Furar e Chanfrar | | Tipo de medição | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 190-SG |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 3.46 mm |
| Insert Seat Size Code (SSC) | 19.0 | Material do corpo | Steel |
| Cutting Diameter Minimum (DCN) | 19 mm | Flange Diameter (DF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 19.9 mm | Body Diameter Reduced (BDRED) | 32 mm |
| Protruding Length (LPR) | 82.3 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 78.84 mm | Unidade | M |
| Overall Length (OAL) | 138.3 mm |
Características do Produto
| Descrição da Família | Brocas de 10 a 20,5 de diâmetro com encaixes intercambiáveis L = 3xD. CHAMDRILL - parte da linha multi funcional CHAMELEON. | COO | Israel |
| Observações | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Peso da embalagem
0.3940

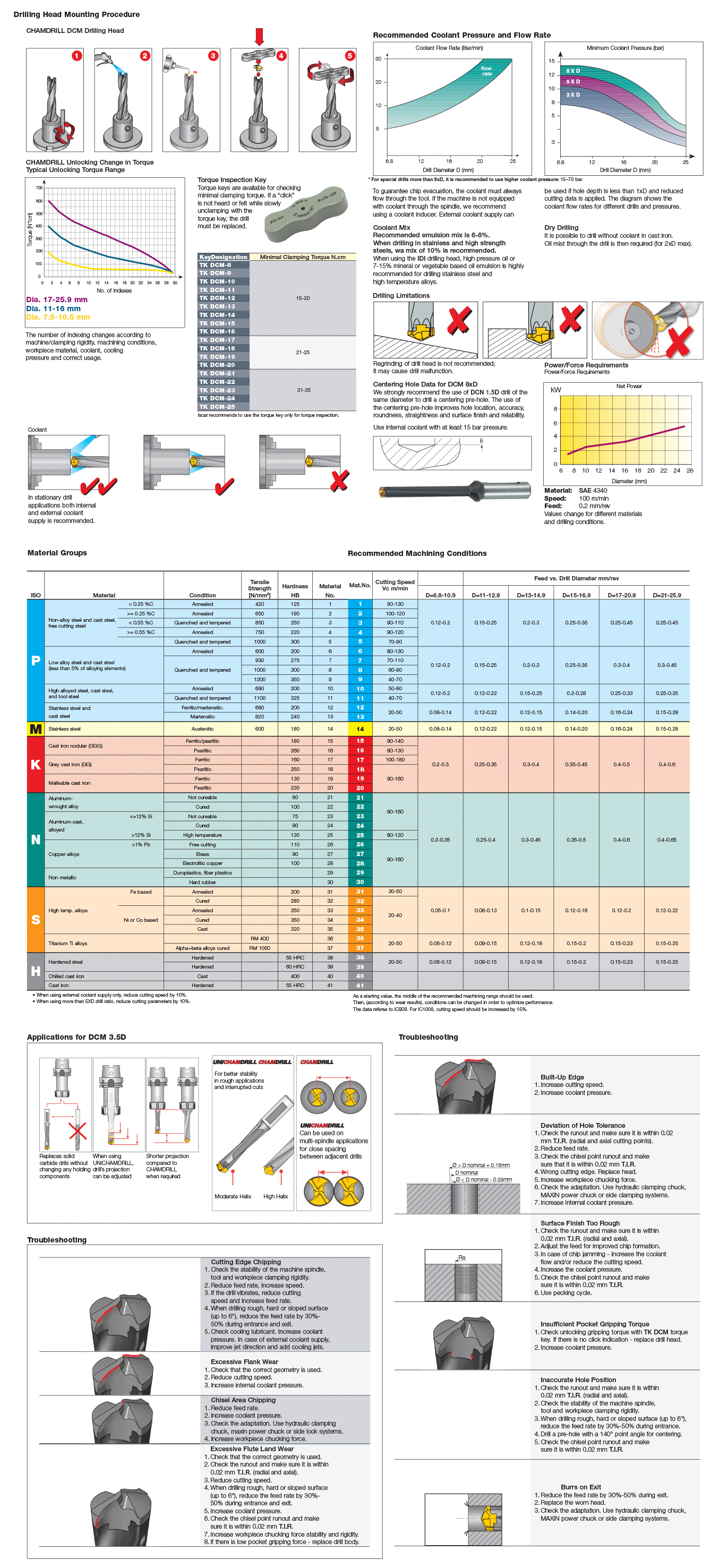

Related Documentation
Do not monut smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
