DCN 110-088-16A-8D

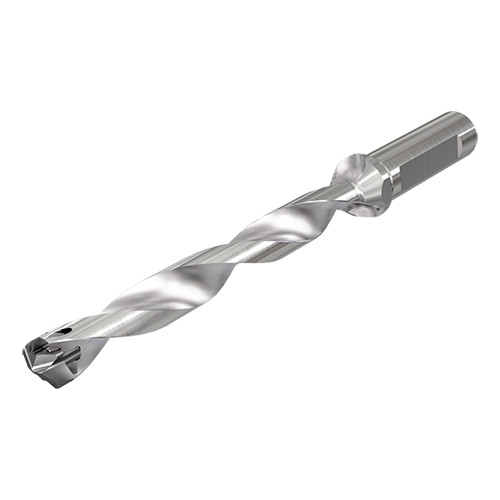

SUMOCHAM 8xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price
Especificações do Produto

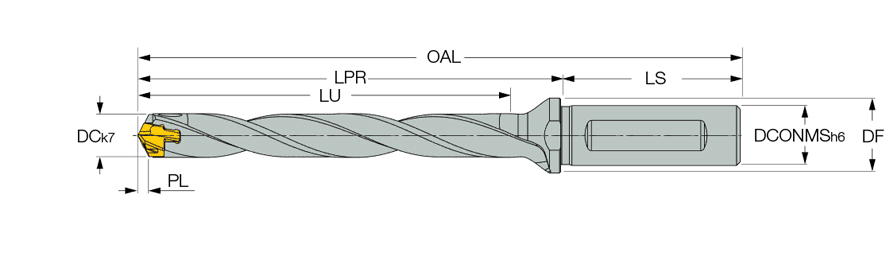

| Cutting Diameter (DC) | 11 mm | Overall Length (OAL) | 152.6 mm |
| Usable Length (LU) | 89.67 mm | Shank Length (LS) | 48 mm |
| Tipo de Haste | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Aplicação | | Furação | | Tipo de medição | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 110 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 1.67 mm |
| Insert Seat Size Code (SSC) | 11.0 | Material do corpo | Steel |
| Cutting Diameter Minimum (DCN) | 11 mm | Flange Diameter (DF) | 20 mm |
| Cutting Diameter Maximum (DCX) | 11.49 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 104.6 mm | Unidade | M |
| Functional Length (LF) | 102.6 mm |
Características do Produto
| Descrição da Família | SUMOCHAM 8xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Observações | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Peso da embalagem
0.1490
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
