DCN 150-075-20R-5D

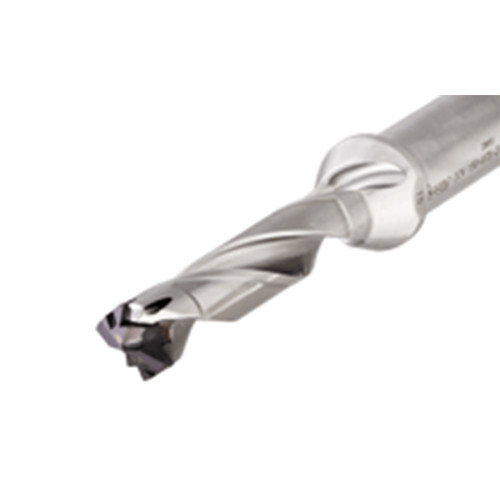

SUMOCHAM 5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price
Especificações do Produto

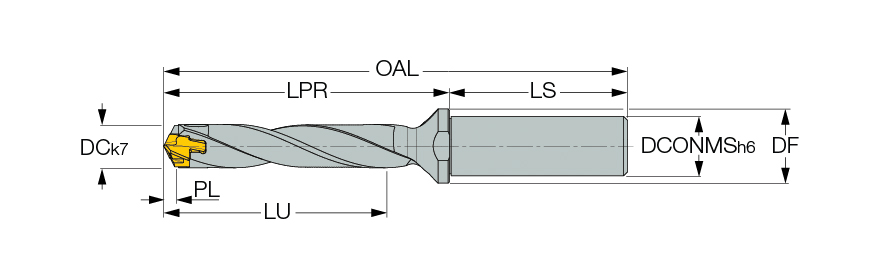

| Cutting Diameter (DC) | 15 mm | Overall Length (OAL) | 148.7 mm |
| Usable Length (LU) | 77.27 mm | Shank Length (LS) | 50 mm |
| Tipo de Haste | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Aplicação | | Furação | | Tipo de medição | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 150 |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Point Length (PL) | 2.27 mm |
| Insert Seat Size Code (SSC) | 15.0 | Material do corpo | Steel |
| Cutting Diameter Minimum (DCN) | 15 mm | Flange Diameter (DF) | 25 mm |
| Cutting Diameter Maximum (DCX) | 15.99 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 98.7 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 95.97 mm | Unidade | M |
Características do Produto
| Descrição da Família | SUMOCHAM 5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Observações | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Peso da embalagem
0.2570
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
