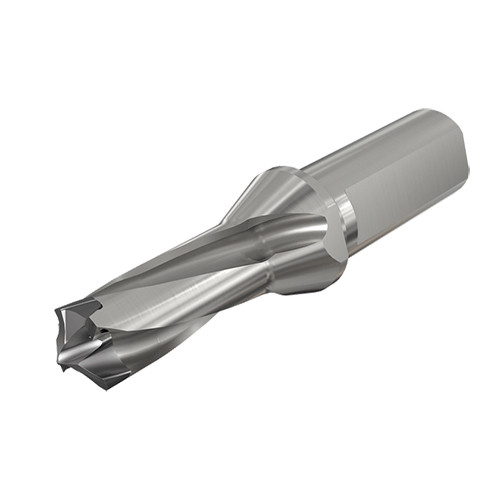

D3N 0709-106-100A-1.5D
Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD
Price: Log in For Price
Especificações do Produto

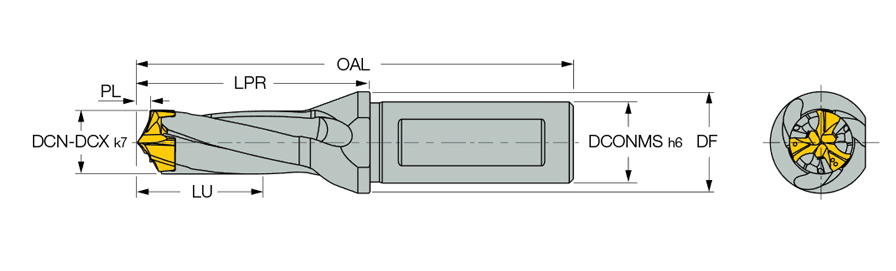

| Cutting Diameter (DC) | 0.709″ | Shank Length (LS) | 2.21″ |
| Usable Length (LU) | 1.217″ | Coolant Supply Property (CSP) | Coolant Thru |
| Aplicação | | Furação | | Tipo de medição | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Master Insert Identification (MIID) | H3P 0709 |
| Insert Seat Size Code (SSC) | 18 | Point Length (PL) | 0.1536″ |
| Cutting Diameter Minimum (DCN) | 0.709″ | Material do corpo | Steel |
| Cutting Diameter Maximum (DCX) | 0.744″ | Flange Diameter (DF) | 1.26″ |
| Protruding Length (LPR) | 2.53″ | Equivalente Decimal | 0.709″ |
| Overall Length (OAL) | 4.739″ | Unidade | I |
Características do Produto
| Descrição da Família | Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD | COO | Israel |
| Observações | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Peso da embalagem
0.8179
