Especificações do Produto

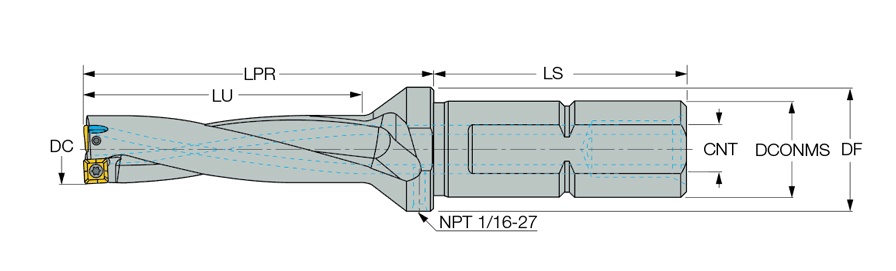

| Cutting Diameter (DC) | 1-7/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 7-1/2″ | Cutting Diameter Maximum (DCX) | 2.047″ |
| Aplicação | | Furação | | Flange Diameter (DF) | 2.362″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Tipo de medição | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 16 |
| Protruding Length (LPR) | 8.92″ | Material do corpo | Steel |
| Shank Length (LS) | 3″ | Equivalente Decimal | 1.875″ |
| Functional Length (LF) | 8.864″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 11.92″ | Unidade | I |
Características do Produto

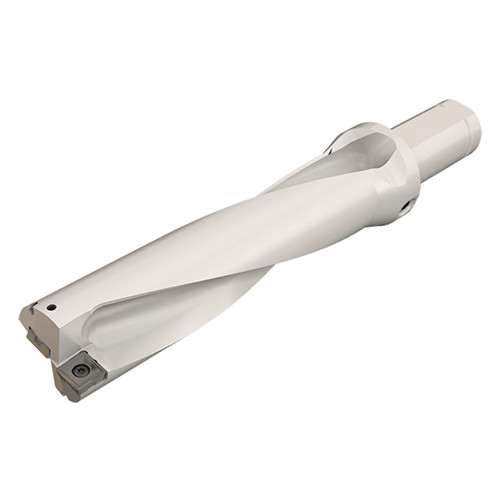

| Descrição da Família | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD. | COO | Israel |
| Observações | Hole tolerance D+.014/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Peso da embalagem
5.5358
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
