Especificações do Produto

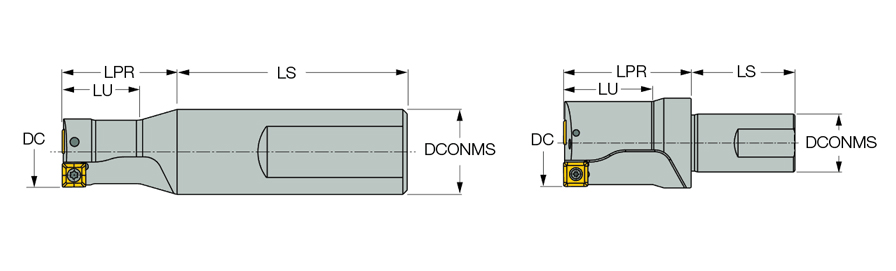

| Cutting Diameter (DC) | 1-3/4″ | Overall Length (OAL) | 5.37″ |
| Usable Length (LU) | 1-3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Aplicação | | Furação | Furar e Fresar | | Tipo de medição | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Master Insert Identification (MIID) | SOMT 12 |
| Tool Type | indexable head drills | Material do corpo | Steel |
| Protruding Length (LPR) | 2.68″ | Equivalente Decimal | 1.75″ |
| Shank Length (LS) | 2.69″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 2.62″ | Unidade | I |
Características do Produto
| Descrição da Família | Drilling/milling versatile tools, may be used for plunging, shouldering, slotting, pocket milling, counterboring, spot facing and profiling applications. | COO | Israel |
| Observações | Hole tolerance: +.006/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions. Intermediate sizes may be obtained by shifting the drill center along the lathe X-axis, or by using eccenter sleeves (see page ..) in drill rotating applications. |
Shipping Info
Peso da embalagem
2.3193
