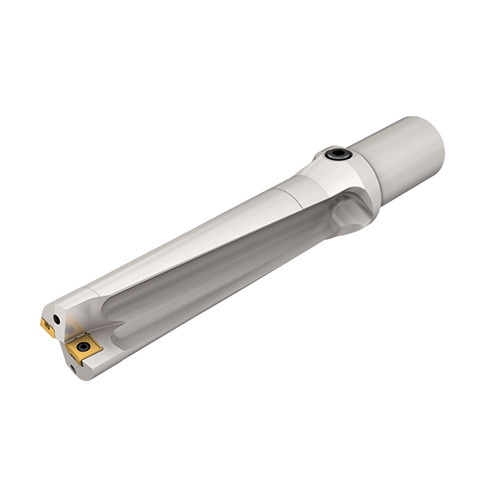

DR560-224-40-16-4D-T
Indexable insert drills for non-rotating applications with coolant holes and one flat shank, drilling depth 4xD
Price: Log in For Price
Especificações do Produto

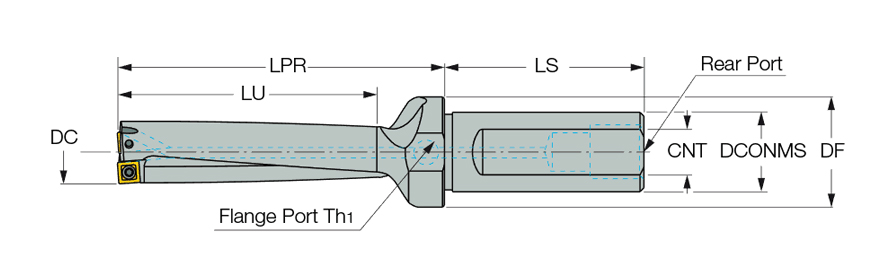

| Cutting Diameter (DC) | 56 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 224 mm | Cutting Diameter Maximum (DCX) | 57.9 mm |
| Aplicação | | Furação | | Flange Diameter (DF) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tipo de medição | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 160512-DT |
| Protruding Length (LPR) | 259 mm | Material do corpo | Steel |
| Shank Length (LS) | 68 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 257.32 mm | Unidade | M |
| Overall Length (OAL) | 327 mm |
Características do Produto
| Descrição da Família | Indexable insert drills for non-rotating applications with coolant holes and one flat shank, drilling depth 4xD | COO | Israel |
| Observações | Hole tolerance: D+0.35/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions. |
Shipping Info
Peso da embalagem
3.2460
