Especificações do Produto

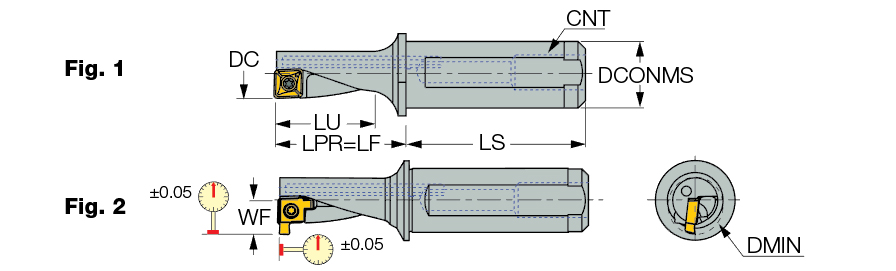

| Cutting Diameter (DC) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 27 mm | Tipo de medição | Metric |
| Aplicação | | Canal | Canal interno | Furação, face ext., torneam. I | Torneamento | Torneamento interno | | Grupo de Comprimento | 2xD |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | XCMT 06... |
| Protruding Length (LPR) | 33 mm | Material do corpo | Steel |
| Shank Length (LS) | 45 mm | Unidade | M |
| Overall Length (OAL) | 78 mm |

Características do Produto

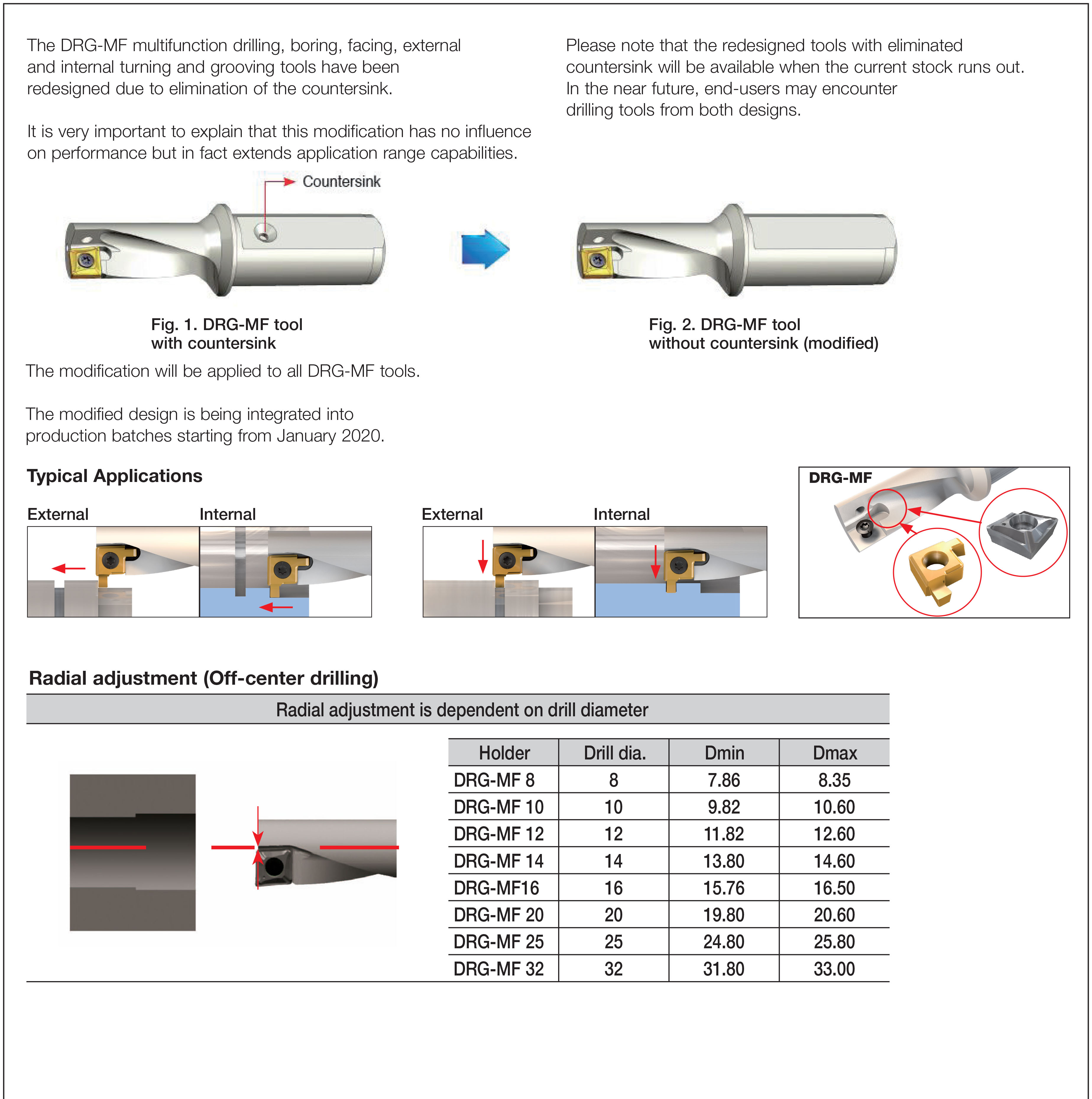

| Descrição da Família | Multifunction drilling, boring, facing, external turning and internal grooving tools. | COO | Korea |
| Observações | In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis The tools feature internal coolant holes. |
