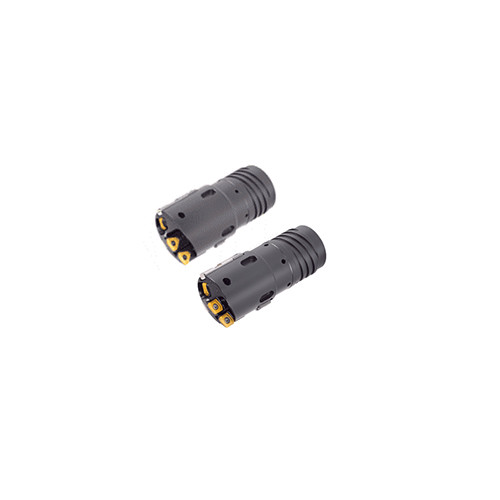

DDD-EC 65.00-66.99
Deep double tube drills with external 4-start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price
Especificações do Produto

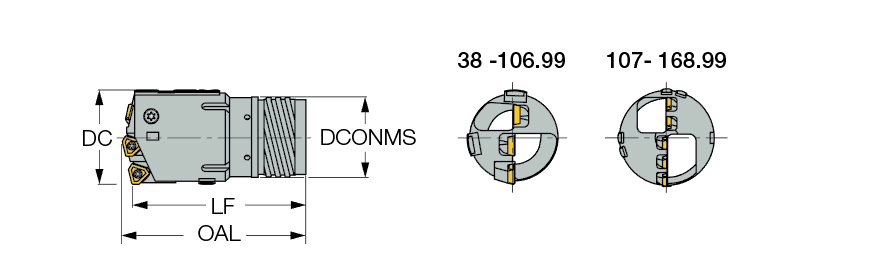

| Aplicação | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 65 mm |
| Connection Diameter Machine Side (DCONMS) | 52 mm | Cutting Diameter Maximum (DCX) | 66.99 mm |
| Tool Type | Deep Hole / Gun Drill | Tipo de medição | Metric |
| Overall Length (OAL) | 159 mm | Material do corpo | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unidade | M |
| Connection Thread Size (Ts) | TDO-I14 |
Características do Produto
| Descrição da Família | Deep double tube drills with external 4-start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Observações | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide, click on More Info |
