ICG 177 IC908

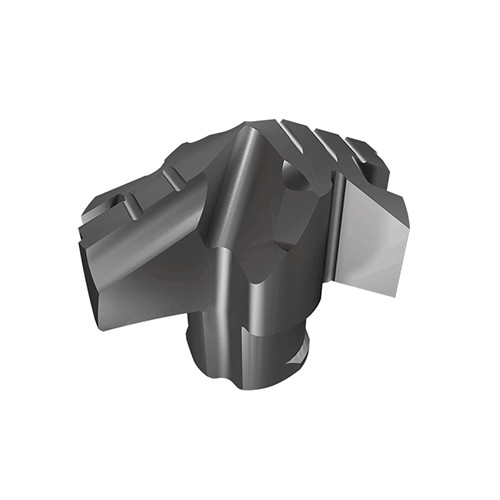

Exchangeable chip splitting drilling heads for DCN drills, for machining ISO M and ISO P materials . Feature chip splitting notches on the cutting edge and an impressed chip breaker.
Price: Log in For Price
Especificações do Produto

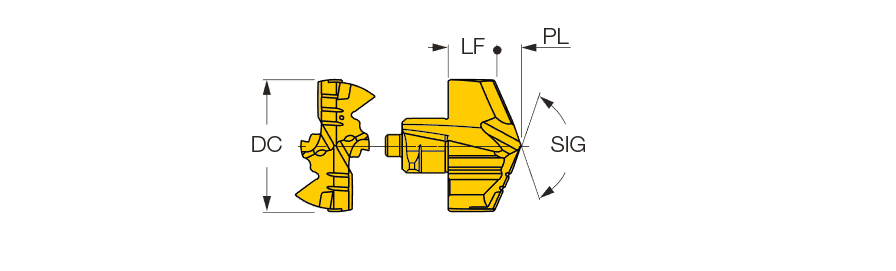

| Cutting Diameter (DC) | 17.7 mm | Tipo de medição | Metric |
| Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | | Insert Thickness (S) | 9.6 mm |
| Aplicação | | Furação | Furar e Chanfrar | | Point Length (PL) | 3.55 mm |
| Classe | IC908 | Point Angle (SIG) | 130 Degrees |
| Tool Type | Drilling Heads | Revestimento | TiAlN |
| Insert Seat Size Code (SSC) | 17.0 | Material do corpo | Carbide |
| Functional Length (LF) | 6.05 mm | Unidade | M |
| Material da aresta de Corte | Carbide |
Características do Produto
| Descrição da Família | Exchangeable chip splitting drilling heads for DCN drills, for machining ISO M and ISO P materials . Feature chip splitting notches on the cutting edge and an impressed chip breaker. | COO | Israel |
| Observações | Drilling head equipped with chip breaker and chip splitter |
Shipping Info
Peso da embalagem
0.0195
