HCP 270-IQ IC908
Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials.
Price: Log in For Price
Especificações do Produto

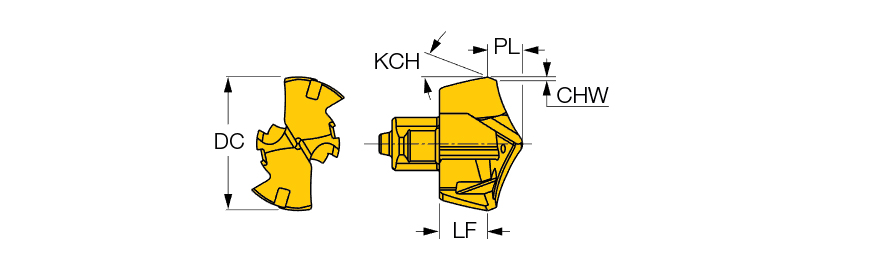

| Cutting Diameter (DC) | 27 mm | Insert Thickness (S) | 15.65 mm |
| Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | | Point Length (PL) | 6.2 mm |
| Aplicação | | Furação | Furar e Chanfrar | | Point Angle (SIG) | 136 Degrees |
| Classe | IC908 | Revestimento | TiAlN |
| Tool Type | Drilling Heads | Corner Chamfer Width (CHW) | 0.62 mm |
| Insert Seat Size Code (SSC) | 27.0 | Ângulo de chanfro | 30 Degrees |
| Functional Length (LF) | 9.45 mm | Material do corpo | Carbide |
| Material da aresta de Corte | Carbide | Unidade | M |
| Tipo de medição | Metric |
Características do Produto
| Descrição da Família | Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials. | COO | Israel |
| Observações | Advance Self-Centering and high surface finish |
Shipping Info
Peso da embalagem
0.0680
