H3P 125-IQ IC908

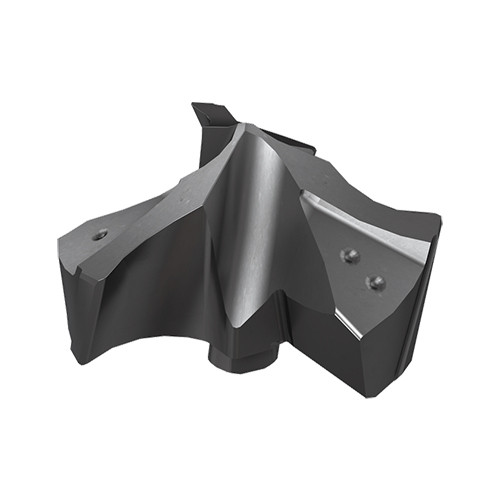

Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.
Price: Log in For Price
Especificações do Produto

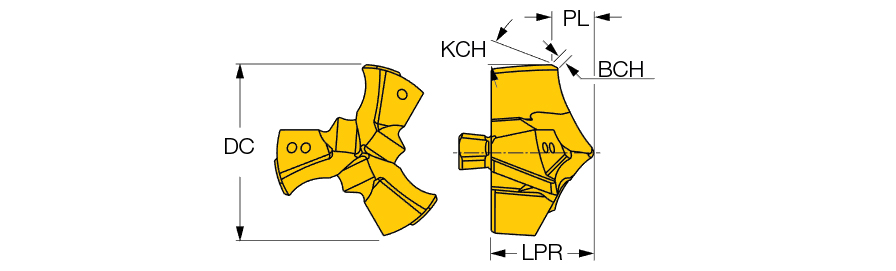

| Cutting Diameter (DC) | 12.5 mm | Tipo de medição | Metric |
| Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | | Point Length (PL) | 2.71 mm |
| Aplicação | | Furação | | Point Angle (SIG) | 135 Degrees |
| Classe | IC908 | Revestimento | TiAlN |
| Protruding Length (LPR) | 6.92 mm | Ângulo de chanfro | 15 Degrees |
| Insert Seat Size Code (SSC) | 12 | Material do corpo | Carbide |
| Functional Length (LF) | 4.21 mm | Unidade | M |
| Material da aresta de Corte | Carbide |
Características do Produto
| Descrição da Família | Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm. | COO | Israel |
Shipping Info
Peso da embalagem
0.0095
