HFP 385-SPADE IQ IC908

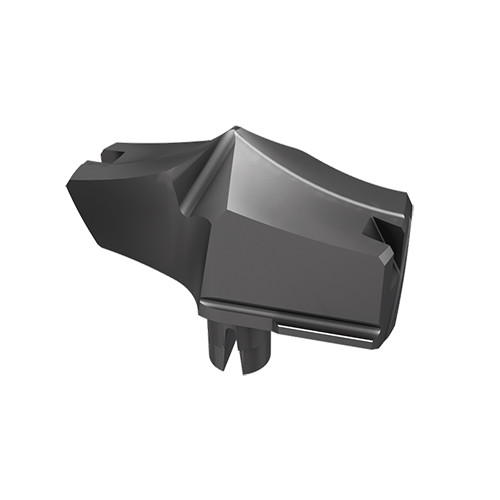

Exchangeable DFN drill heads for carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.5 mm.
Price: Log in For Price
Especificações do Produto

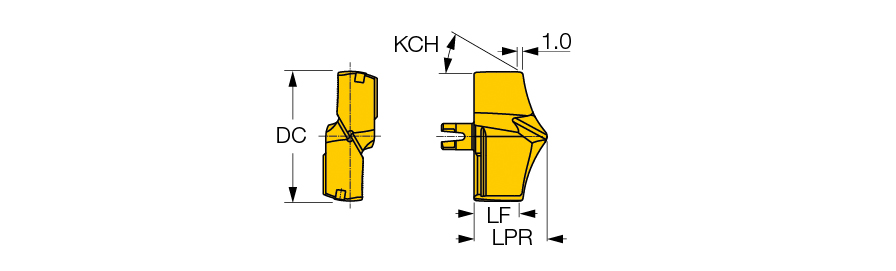

| Cutting Diameter (DC) | 38.5 mm | Insert Thickness (S) | 22 mm |
| Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | | Point Length (PL) | 8.2 mm |
| Aplicação | | Furação | | Point Angle (SIG) | 137 Degrees |
| Classe | IC908 | Revestimento | TiAlN |
| Tool Type | Drilling Heads | Corner Chamfer Width (CHW) | 1 mm |
| Insert Seat Size Code (SSC) | 38.0 | Ângulo de chanfro | 30 Degrees |
| Functional Length (LF) | 13.8 mm | Material do corpo | Carbide |
| Material da aresta de Corte | Carbide | Unidade | M |
| Tipo de medição | Metric |
Características do Produto
| Descrição da Família | Exchangeable DFN drill heads for carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.5 mm. | COO | Israel |
| Observações | Advance self centering, and high surface finish Intermediate sizes can be supplied on request |
Shipping Info
Peso da embalagem
0.0990
