Especificações do Produto

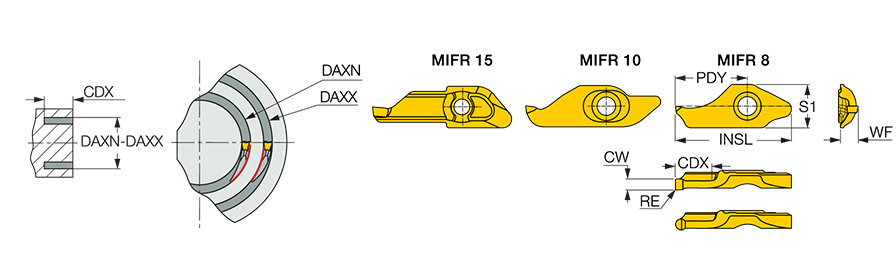

| Cutting Width (CW) | 2 mm | Depth of Cut Maximum (APMX) | 0.7 mm |
| Insert Length (INSL) | 25.1 mm | Mín Ap. | 0.2 mm |
| Corner Radius (RE) | 0.2 mm | Axial Groove Outside Diameter Minimum (DAXN) | 10 mm |
| Cutting Depth Maximum (CDX) | 9 mm | Máx. Avanço Canal de Face (ffg(max)) | 0.1 mm/rev |
| Insert Thickness Total (S1) | 7.6 mm | Mín. Avanço Canal de Face (ffg(max)) | 0.02 mm/rev |
| Material da aresta de Corte | Carbide | Mín. Avanço Faceamento (fft(min)) | 0.02 mm/rev |
| Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | | Tipo de medição | Metric |
| Classe | IC908 | Revestimento | TiAlN |
| Aplicação | | Canal em face | Ranhuramento frontal interno | Rebaixo de face interna | Torneamento em face | | Material do corpo | Carbide |
| Tool Type | Face Turn-Groove Inserts | Unidade | M |
| Functional Width (WF) | 3 mm |

Características do Produto

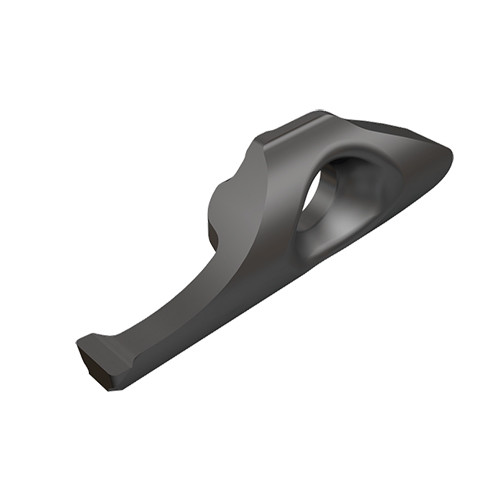

| Descrição da Família | MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow | Nome da Família | MIFR |

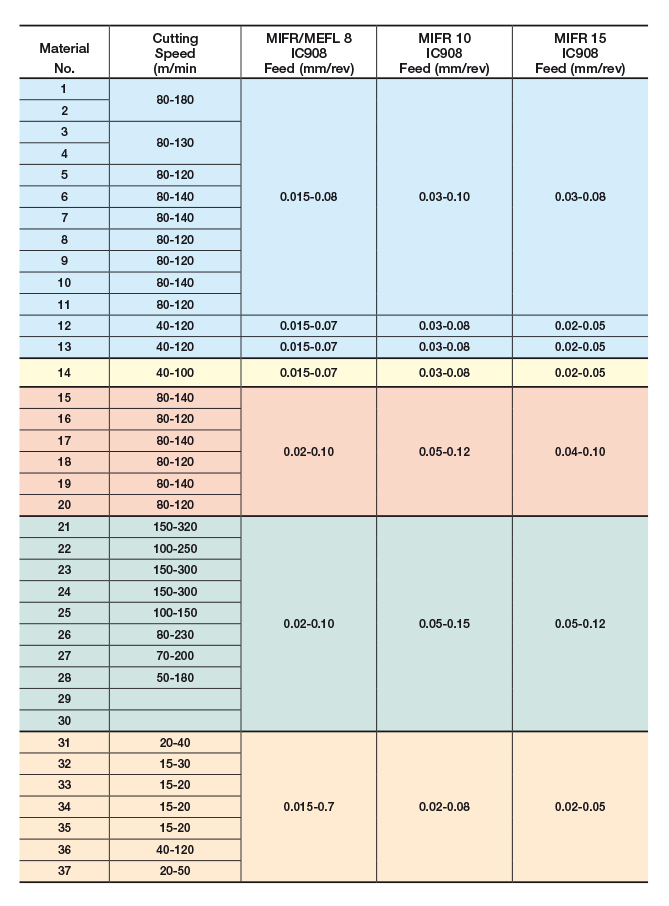

| Observações | Recommended cutting speeds and feeds can be increased by 20-30% for aluminum, and reduced by 20-30% for titanium and Inconel | Nome da marca | Iscar |
| COO | Israel |
Shipping Info
Peso da embalagem
0.0044
Nome
Face Groove/Turn Indexable Inserts
Nome da Família
MIFR
Nome da marca
Iscar
