MTH 23 E 14 UN IC908

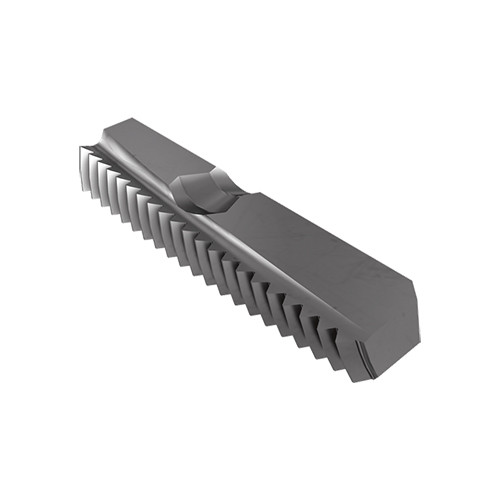

Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) external full profile threads. Application: general industry.
Price: Log in For Price
Especificações do Produto

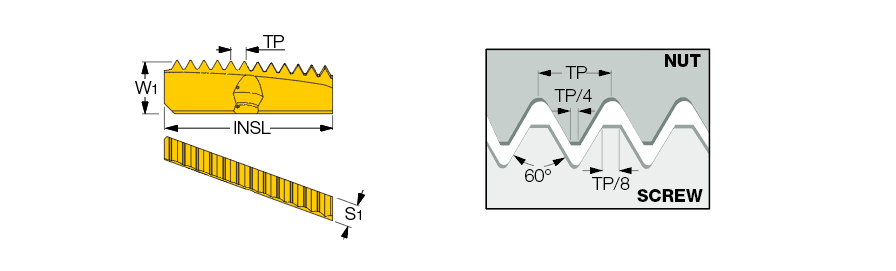

| Rosca standard | THFT | | Material da aresta de Corte | Carbide |
| Threads per Inch (TPI) | 14 Threads/" | Revestimento | TiAlN |
| Insert Length (INSL) | 27 mm | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 8 mm | Tipo de medição | Metric |
| Insert Thickness Total (S1) | 3.5 mm | Material do corpo | Carbide |
| Aplicação | | Fresamento Externo de Rosca | | Thread Form Type (THFT) | UN60 |
| Material Aplicável | | Aço | Aço Inoxidável | Ferro Fundido | Materiais Endurecidos | Ligas de Alta Temperatura | | Thread Type (TTP_DF2) | EXT |
| Classe | IC908 | Unidade | M |
Características do Produto
| Descrição da Família | Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) external full profile threads. Application: general industry. | COO | Israel |
| Observações | Used for UN, UNC, UNF, UNEF and UNS thread profiles For cutting speed recommendations, Click on More Info |
Shipping Info
Peso da embalagem
0.0002
