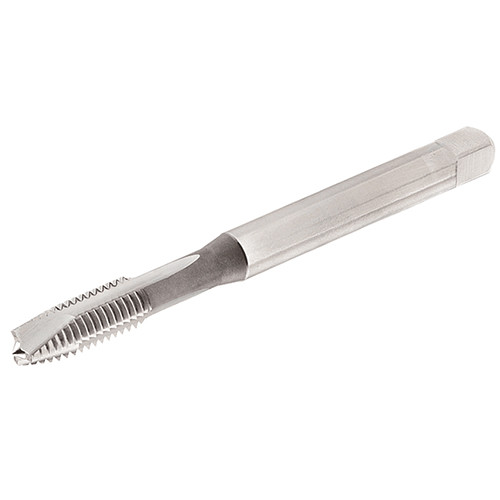

TPG UNC-#10-24-M HE
HSS gun point machine taps - unified coarse threads for a wide range of materials.
Price: Log in For Price
Especificações do Produto

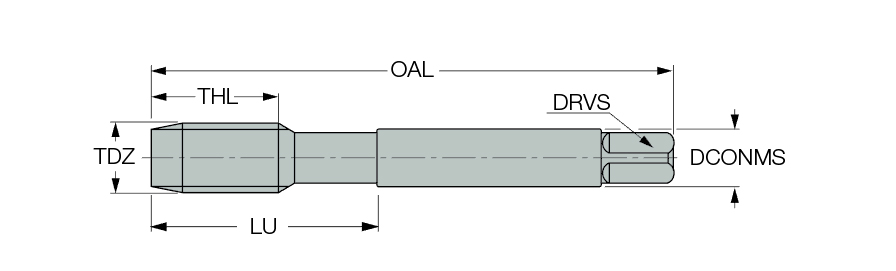

| Thread Diameter Size (TDZ) | #10 | Standard | DIN 371 |
| Thread Pitch (TP) | 1.041 mm | Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 24 Threads/" | Revestimento | Uncoated |
| Rosca standard | THFT | | Drive Size (DRVS) | 4.9 mm |
| Overall Length (OAL) | 70 mm | Tipo de medição | Metric |
| Thread Cutting Part Length (THL) | 15 mm | Classe | HE |
| Usable Length (LU) | 25 mm | Tamanho da Rosca | 10 - 24 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Material do corpo | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | UN60 |
| Aplicação | | Macho p/ furo passante curto | Macho p/ furo passante profund | Macho para furo passante curto | | Unidade | M |
| Material da aresta de Corte | HSS |
Características do Produto
| Descrição da Família | HSS gun point machine taps - unified coarse threads for a wide range of materials. | COO | Korea |
Shipping Info
Peso da embalagem
0.0140
