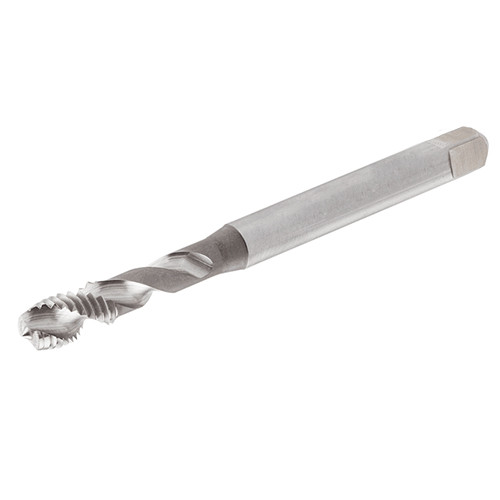

TPS M-2.2X0.45-M HE
DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials.
Price: Log in For Price
Especificações do Produto

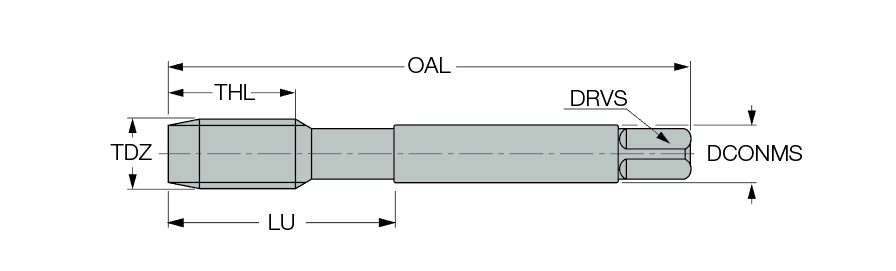

| Thread Diameter Size (TDZ) | M2.2 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 0.45 mm | Revestimento | Uncoated |
| Rosca standard | THFT | | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 45 mm | Tipo de medição | Metric |
| Thread Cutting Part Length (THL) | 8 mm | Classe | HE |
| Usable Length (LU) | 13 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Aplicação | | Furo profundo com rosca curta | Macho para furo cego curto | Macho para furo cego profundo | |
| Flute Count (NOF) | 3 | Material do corpo | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 2.1 mm |
| Material da aresta de Corte | HSS | Tamanho da Rosca | M2.2 × 0.45 |
| Standard | DIN 371 | Unidade | M |
Características do Produto
| Descrição da Família | DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials. | COO | Korea |
Shipping Info
Peso da embalagem
0.0040
