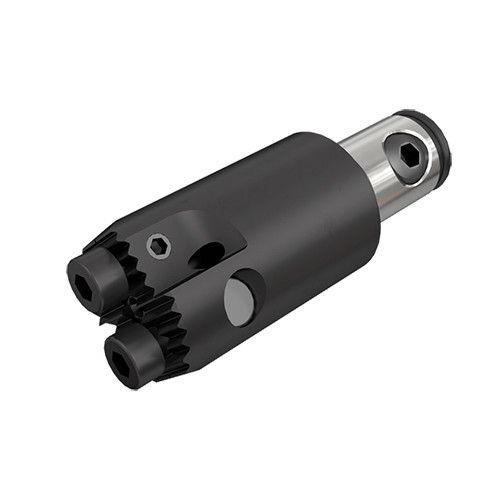

BHR MB40-40X75

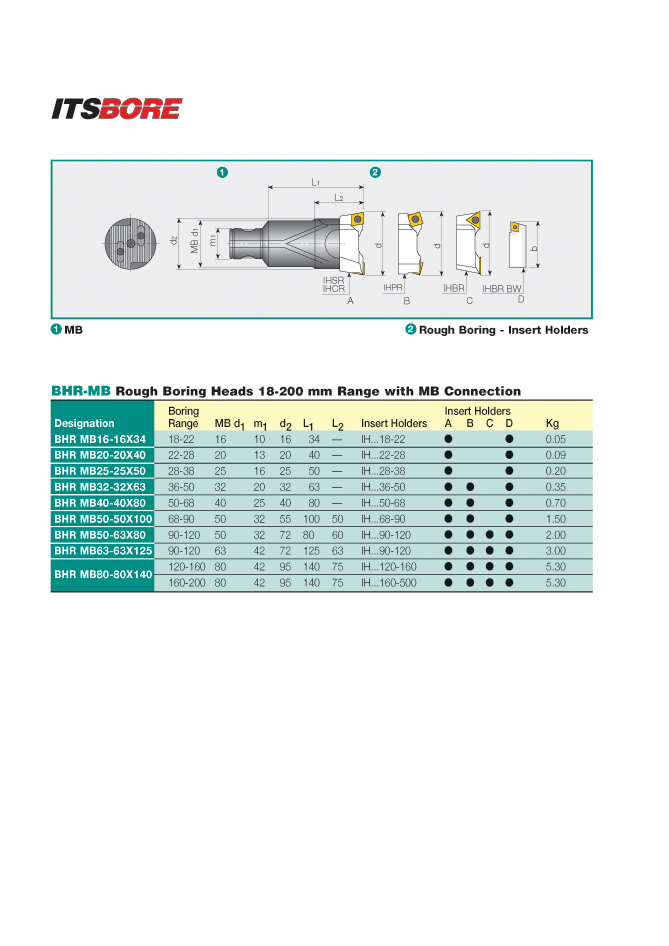

Rough boring heads for diameter range 18-200 mm used on the MB modular boring system.
Price: Log in For Price
Especificações do Produto

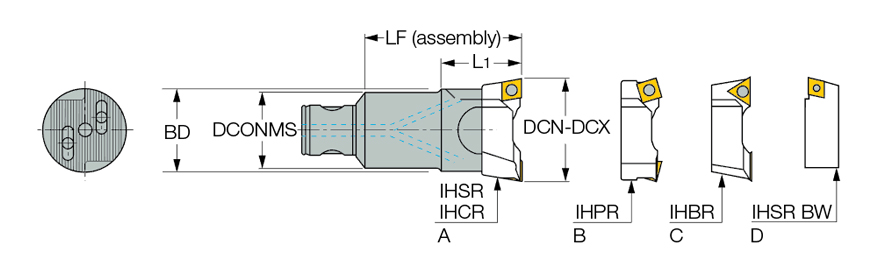

| Cutting Diameter Minimum (DCN) | 50 mm | Tool Type | MB Rough boring heads |
| Cutting Diameter Maximum (DCX) | 68 mm | Tipo de medição | Metric |
| Functional Length (LF) | 75 mm | Rotational Speed Maximum (RPMX) | 8000 rpm |
| Body Diameter (BD) | 45 mm | Material do corpo | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Unidade | M |
| Insert Holders (IH) | IH...50-68 |
Características do Produto
| Descrição da Família | Rough boring heads for diameter range 18-200 mm used on the MB modular boring system. | COO | Italy |
| Observações | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. Click on individual item, then on More Info to see split view of its spare parts. |
Shipping Info
Peso da embalagem
0.7160
