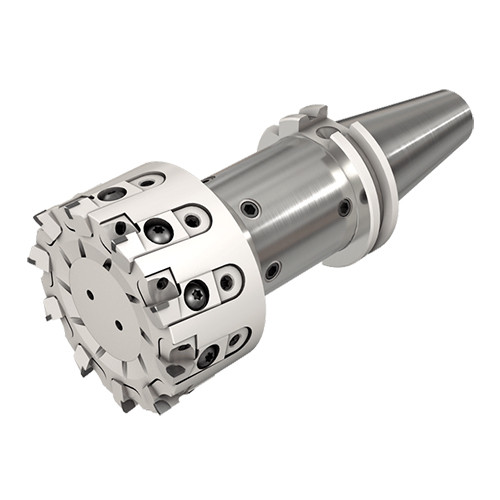

SPN D080-10-INT40-R-CA
90° endmills with DIN69871 adaptation carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces
Price: Log in For Price
Especificações do Produto

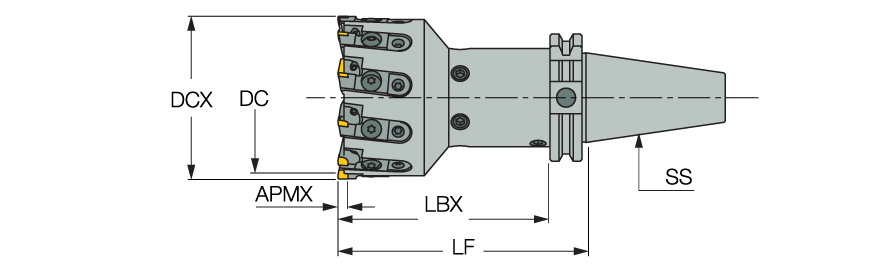

| Cutting Diameter (DC/DCX) | 81.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 80 mm | Material do corpo | Steel |
| Cutting Diameter Maximum (DCX) | 81.4 mm | Aplicação | | DIN 69871 | Faceamento | Rebaixamento | |
| Cutting Item Count (CICT) | 10 | Tipo de medição | Metric |
| Depth of Cut Maximum (APMX) | 3 mm | Unidade | M |
| Connection Diameter Machine Side (DCONMS) | 40 |
Características do Produto
| Descrição da Família | 90° endmills with DIN69871 adaptation carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces | Nome da Família | SPN D#INT40#R-CA IT |
| Observações | Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screws Kit balancing screws should be ordered separately Insert tightening torque: 6 (Nxm) | Nome da marca | Iscar |
| COO | Italy |
Shipping Info
Nome
Indexable Face Mills
Nome da Família
SPN D#INT40#R-CA IT
Nome da marca
Iscar
