TPHN M-12X1.75-W HS

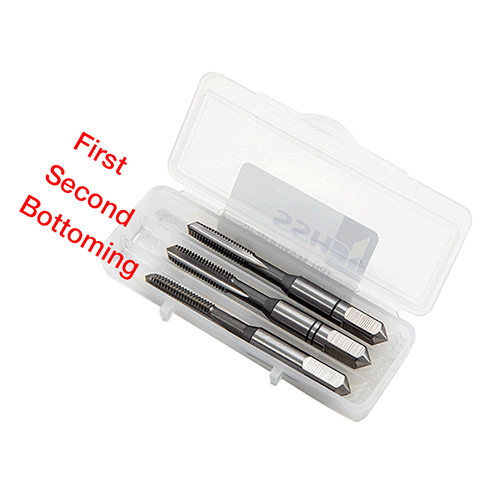

DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, second operation, and bottoming operation.
Price: Log in For Price
Especificações do Produto

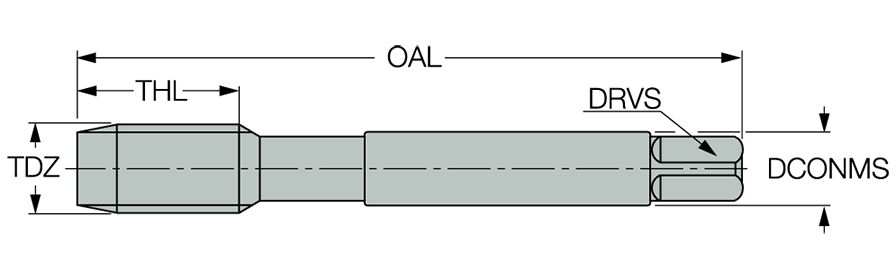

| Thread Diameter Size (TDZ) | M12 | Tipo de medição | Metric |
| Standard | DIN 352 | Thread Cutting Part Length (THL) | 28 mm |
| Tool Type | Hand Taps | Classe | HS |
| Overall Length (OAL) | 75 mm | Thread Pitch (TP) | 1.75 mm |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Tamanho da Rosca | M12 × 1.75 |
| Flute Count (NOF) | 3 | Material do corpo | HSS |
| Material da aresta de Corte | HSS | Unidade | M |
| Aplicação | | Furo profundo com rosca curta | Macho p/ furo passante curto | Macho p/ furo passante profund | Macho para furo cego curto | Macho para furo cego profundo | Macho para furo passante curto | |
Características do Produto
| Descrição da Família | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, second operation, and bottoming operation. | COO | Hungary |
| Observações | NOTE: Each set contains 2 or 3 taps |
Shipping Info
Peso da embalagem
0.1130
