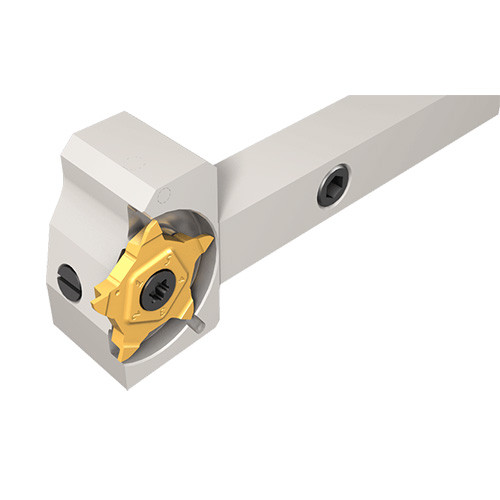

PCHRS 16-24 JHP-QC
Toolholders carrying PENTACUT inserts (with 5 cutting edges) for grooving, parting and recessing next to high shoulders, enables quick and accurate cutting-edge indexing.
Price: Log in For Price
Especificações do Produto

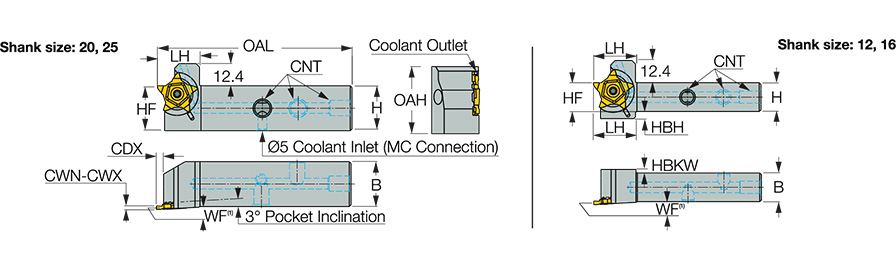

| Shank Height (H) | 16 mm | Material do corpo | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.8 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3.18 mm | Tipo de medição | Metric |
| Overall Length (OAL) | 93.5 mm | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Head Length (LH) | 23.5 mm | Head Bottom Offset Height (HBH) | 4 mm |
| Cutting Depth Maximum (CDX) | 6.2 mm | Tool Assembly Length (LTA) | 34 mm |
| Overall Height (OAH) | 32.4 mm | Unidade | M |
| Aplicação | | Canal | Corte | |
Características do Produto
| Descrição da Família | Toolholders carrying PENTACUT inserts (with 5 cutting edges) for grooving, parting and recessing next to high shoulders, enables quick and accurate cutting-edge indexing. | Nome da Família | PCHRS-24 JHP-QC/MC |
| COO | Israel | Nome da marca | Iscar |
Shipping Info
Peso da embalagem
0.2360
Nome
Parting Off Indexable Holders
Nome da Família
PCHRS-24 JHP-QC/MC
Nome da marca
Iscar
